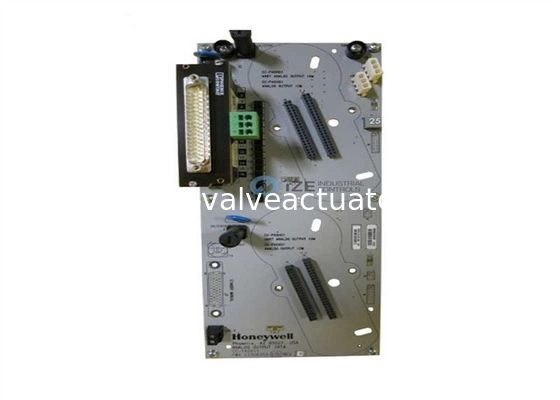

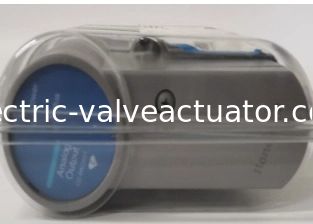

Honeywell CC-TAOX11 Analog Output Module 0.46 AMP 24 VDC Digital I O Module

Honeywell CC-TAOX11 Analog Output Module 0.46 AMP 24 VDC Digital I O Module

Quick Details:

• Brand: Honeywell

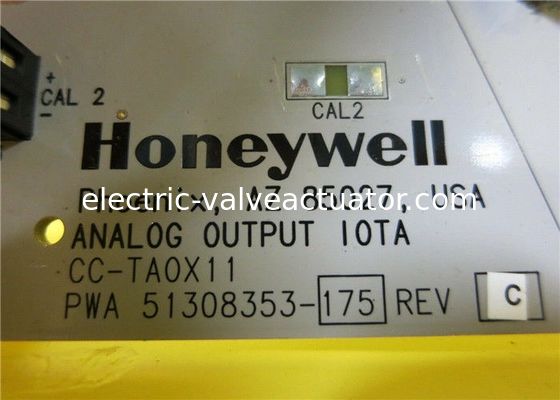

• Model Number: CC-TAOX11
• Part Number: 51308353-175
• Type: Analog output module
• Dimensions: 170 x 100 x 40 mm
• Weight: 0.4 kg
• Voltage: 24 VDC
• Current: 20 mA
• Output: 16-bit
• Accuracy: ±0.1%
• Resolution: 128 levels
• Repeatability: ±0.02%

Honeywell’s CC-TAON11 modules and gateways act as the physical link between an automation system and the process when integrated with the C300 Controller. These devices combine input/output modules and field terminations in a single location. By plugging the input/output modules into input/output termination assemblies, there is no need for a separate chassis to house the electronic components.

C300 Controller
The C300 Controller features a Series C form factor, consisting of an Input Output Termination Assembly (IOTA) and an electronics module that attaches to and connects with the IOTA. A single C300 Controller integrates all control functionalities and communication capabilities, with support for plug-in modules.

The C300 Controller can operate in both non-redundant and redundant setups. Redundant operation generally requires a second identical controller and connecting cables. It links to associated I/O hardware via a pair of I/O Link Interface cables.

The table below outlines the components of the C300 Controller and its related parts. The controller supports both non-redundant and fully redundant operation. Redundancy is inherently designed into the controller, meaning adding a second controller and a redundancy cable creates a redundant controller pair.

Note: The “CC” in the model number indicates that the printed wiring boards have a conformal coating for enhanced environmental protection (denoted as “CU” for uncoated boards).
Analog Output/HART Output Module (16-point)
Supports both standard 4-20mA DC outputs and HART transmitter outputs.
Supply Rating: 0.46A @ 24VDC

Manufacturer-Declared Specifications
Input/Output Models:

• CC-PAOH01 – High-Level Analog Output with HART
• CU-PAOH01 – High-Level Analog Output with HART

IOTA Models:

• CC-TAOX01 (Non-Redundant 6″)
• CU-TAOX01 (Non-Redundant 6″)
• CC-TAOX11 (Redundant 12″)
• CU-TAOX11 (Redundant 12″)
• Output Type: 4-20 mA
• Output Channels: 16
• Output Ripple: < 100 mV peak-to-peak at power line frequency, across a 250 Ω load
• Output Temperature Drift: 0.005% of Full Scale/°C
• Output Readback Accuracy: ±4% of Full Scale
• Output Current Linearity: ±0.05% of Full Scale (nominal)

Resolution:

• Calibrated Accuracy: ±0.05% of Full Scale
• ±0.35% of Full Scale (at 25°C), including linearity
• Directly Settable Output Current Range: 0 mA, 2.9 mA to 21.1 mA
• Maximum Resistive Load (24 V supply = 22 VDC to 28 VDC): 800 ohms
• Maximum Output Compliant Voltage (24 V supply = 22 VDC to 28 VDC): 16 V

Maximum Open Circuit Voltage

• Response Time (from DAC input code to output): Settles to within 1% of the final value within 80 ms
• Gap (0 mA) of Output to Field on Switchover: 22 V
• Redundancy-Specific Response Time: 10 ms maximum
