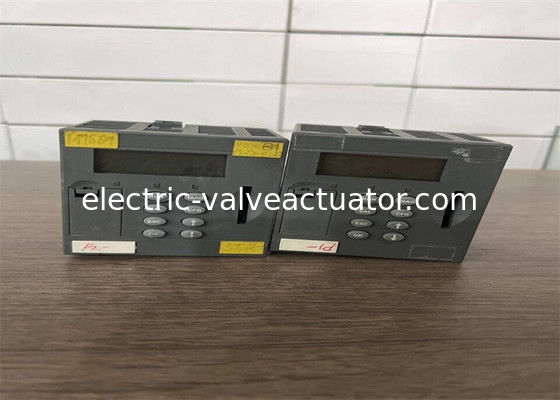

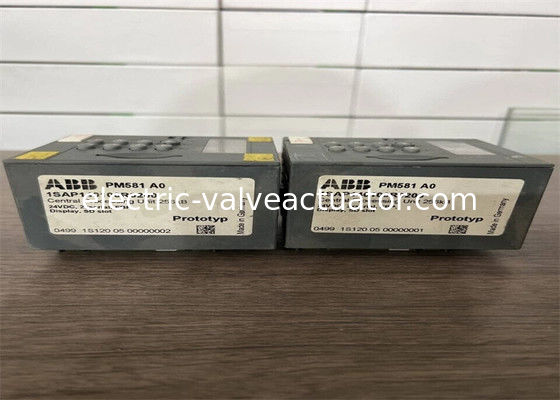

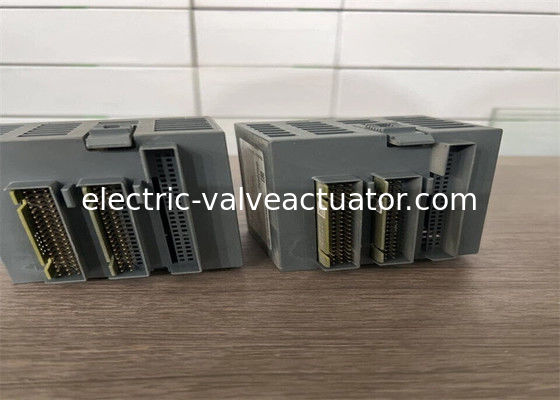

ABB PM581 PLC Programmable Logic Controller 1SAP140100R0200 256kB 24VDC LCD Display

Description of ABB PM581 1SAP140100R0200 AC500 Serial interfaces for communication and programming

•

• European Article Number	4.01678E+12
  Dimensions	54 mm x 76 mm x 68 mm
  ID	1SAP140100R0200
  Name	PM581
  Produced in	-
  Сustoms Tariff Code	85389091
  Weight	0.14 kg
  Analog I/Os Limit	160AI, 160AO Local, max. 10 expansion modules
  User Program Datasize	256 kB
  Display	LCD
  Connections	CPU with Local IO - on I/O-Bus
  Serial Port №1	RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII, CS31 Master
  Display Lines	1
  RTC	Yes
  LEDs Quantity	3
  Data Interface	Serial/FiedlBusPlug
  User Datasize	416 kB
  Ingress Protection Rating	IP20
  User Program Memory Type	Flash EPROM, non-volatile RAM, SD Card
  Serial Port №2	RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII
  Nominal Voltage	24 V DC
  Input Voltage	24 V DC
  DIN Mounting	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  User Memory Type	Flash EPROM
  Software	PS501-PROG Control Builder Plus
  Power Supply	24 V DC
  Communications	Modbus RTU, CS31 Master, ASCII
  Data Interface	Serial interfaces for communication and programming
  Digital I/Os Limit	320DI, 240DO/DC Local, max. 10 expansion modules
  Secondary Current Strength	0.2 A
  Communication Rate	Speed for 1000 instructions of Logic = 0.05 0.05 msSpeed for 1000 instructions of Word = 0.05 0.06 msSpeed for 1000 instructions of Floating-point = 0.5 0.50 ms
  Function Keys	8
  Mounting Style	Horizontal, Vertical possible with derating
